| Form Factor (Midi, Micro, Mini ITX, Full) | ||
| Chassis | SGCC 0.6mm | |
| PSU Form Factor | Bottom/FLEX | |
| M/B Form Factor | Micro-ATX (Max 244*244mm)、Mini-ITX | |
| Front Panel | ABS | |
| Top Panel | metal | |
| Branding | Box | |
| Unit | ||
| (Unit) Position | ||
| Side Panel | Left | metal cover |
| Right | metal cover | |
| External Drive Bay(s) | Slim ODD (9.5mm) | *1 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *1 |
| 2.5" (SSD) | *1 | |
| 3.5“ or 2.5“ HDDx 1, 2.5“SSD x 1 | ||
| I/O | Buttons | *1 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *2 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | *1 | |
| Type C | *0 | |
| P-lock | *0 | |
| Card reader | *0 | |
| Security /COM port | kensington lock,Pad lock | |
| Cooling Fan Support | Front | 1x8015mm(Fan optional) |
| Top | 0 | |
| Rear | 0 | |
| Left Side | 0 | |
| PSU Cover | 0 | |
| Water Cooling Support (Radiator Size) |
Front | 0 |
| Top | 0 | |
| Rear | 0 | |
| Dust Cover | 0 | |
| Slots | *4 | |
| Carton & Logo | OEM | |
| Dimensions | Chassis | (L)26.6 cm x (W)9.5cm x (H)30.5 cm |
| Full Case (inc Fascia) | (L)27.6 cm x (W)9.5 cm x (H)30.5 cm | |
| Carton | (L)37 cm x (W)15.5 cm x (H)34.3 cm | |
| Net Weight (Kg) | kgs | |
| Gross Weight (Kg) | kgs | |
| VGA Card Length | up to 220mm | |
| CPU Cooler Height | UP TO 45mm | |

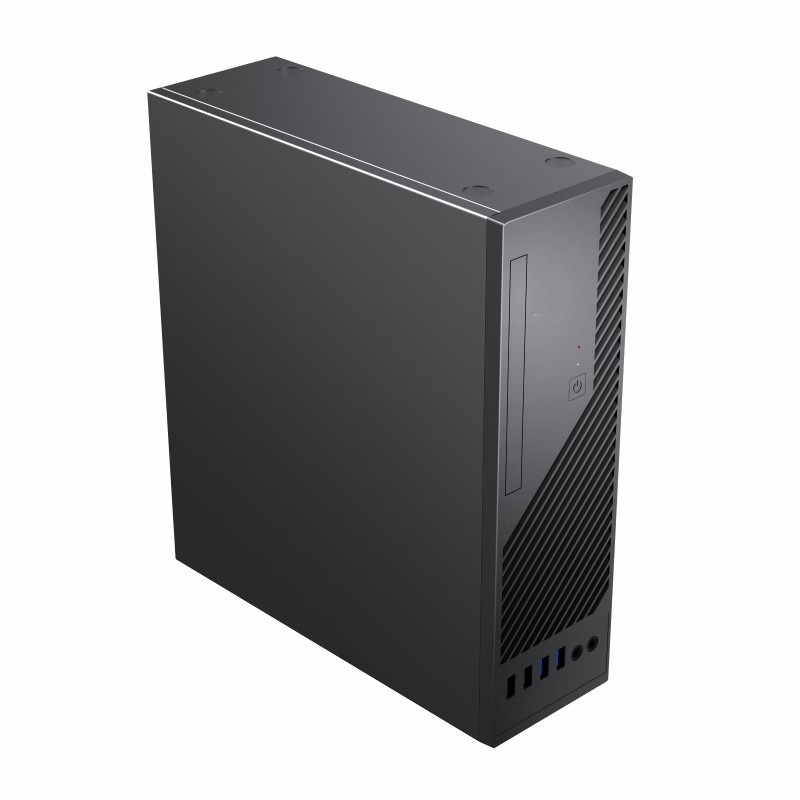

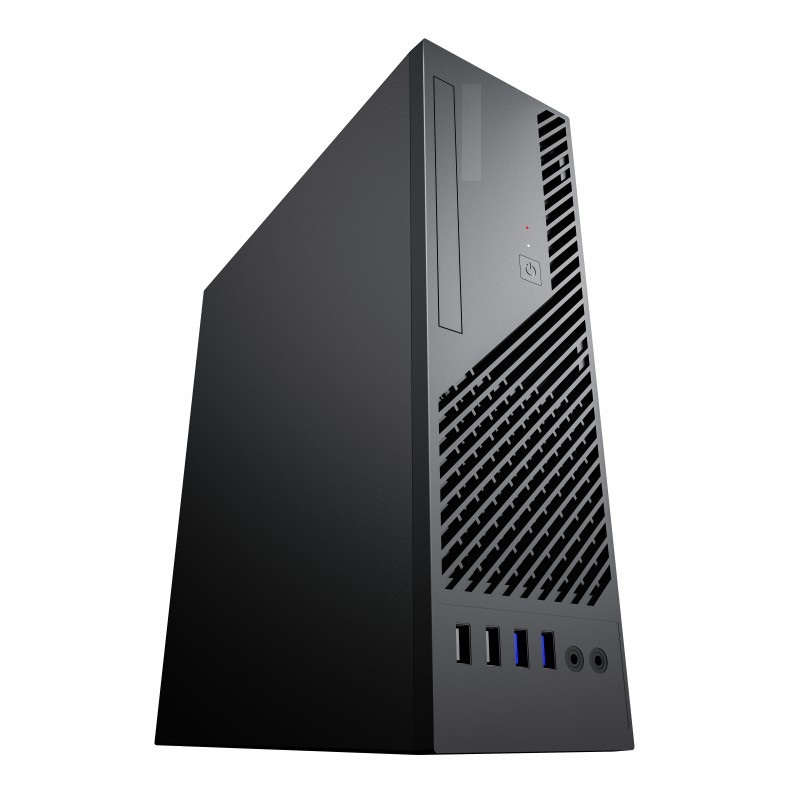

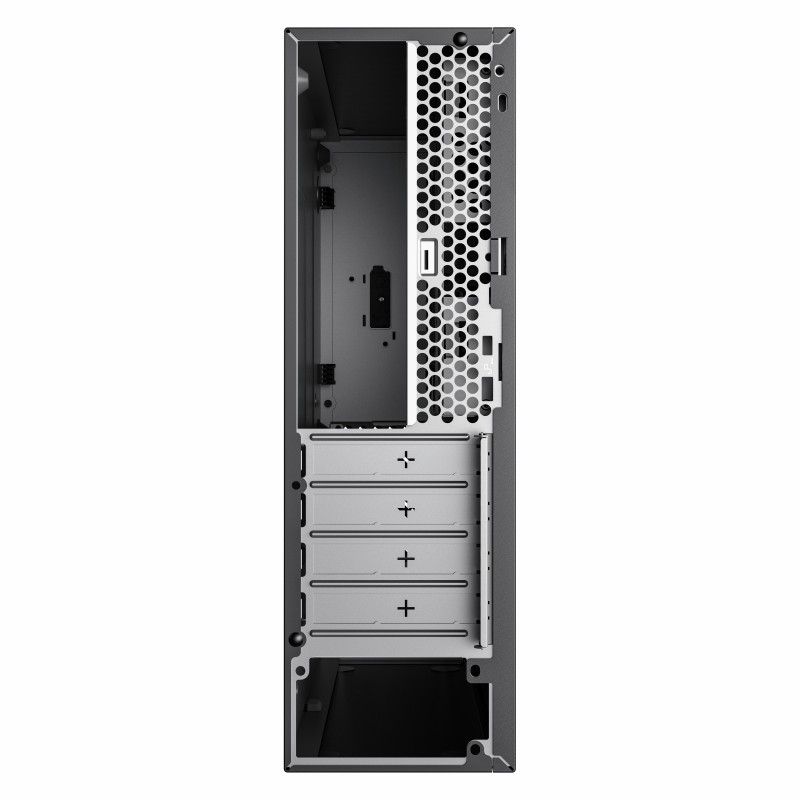

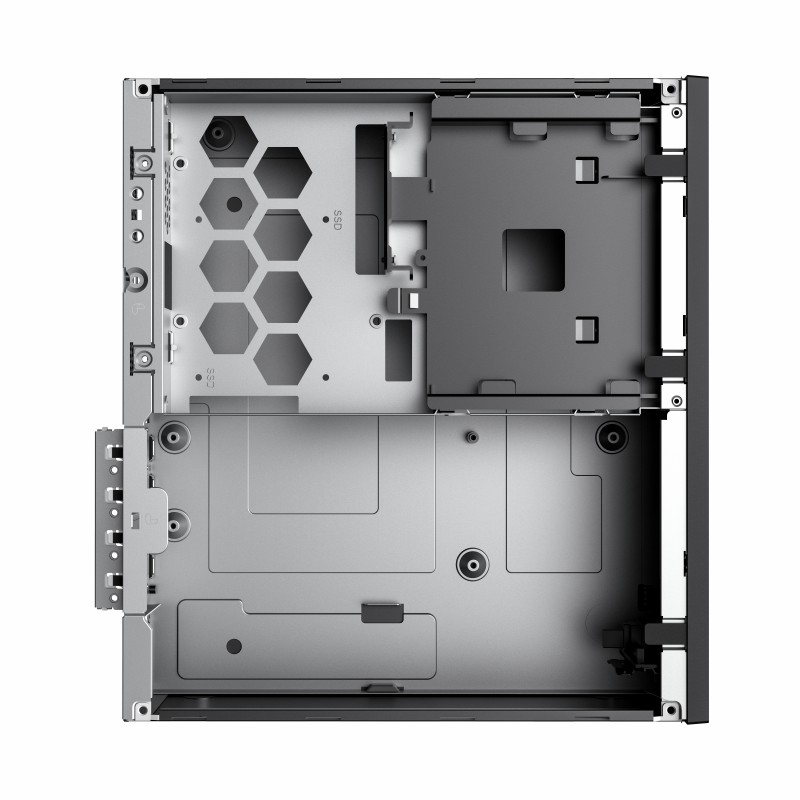

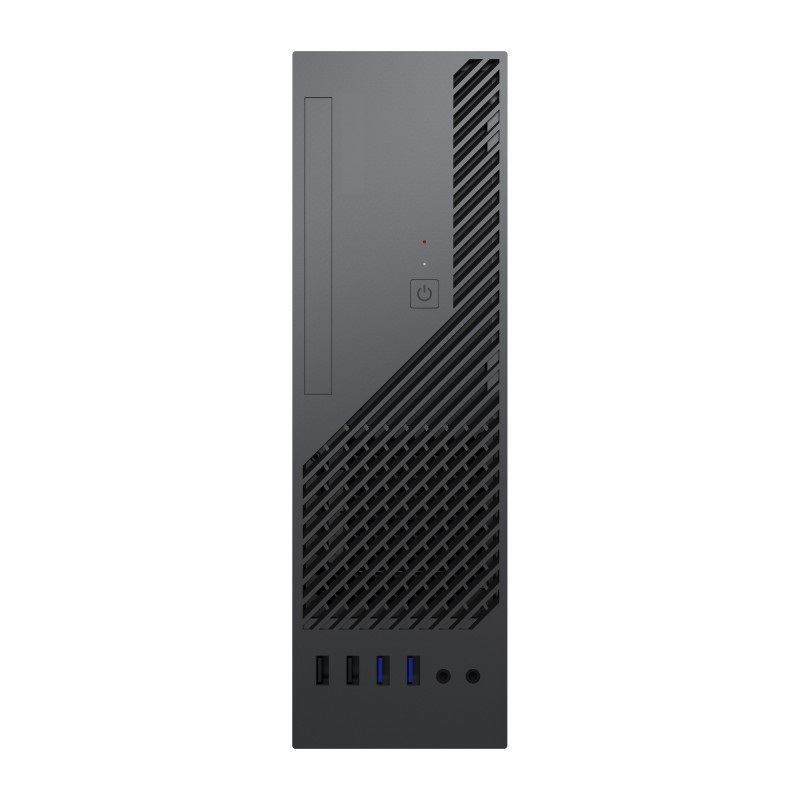

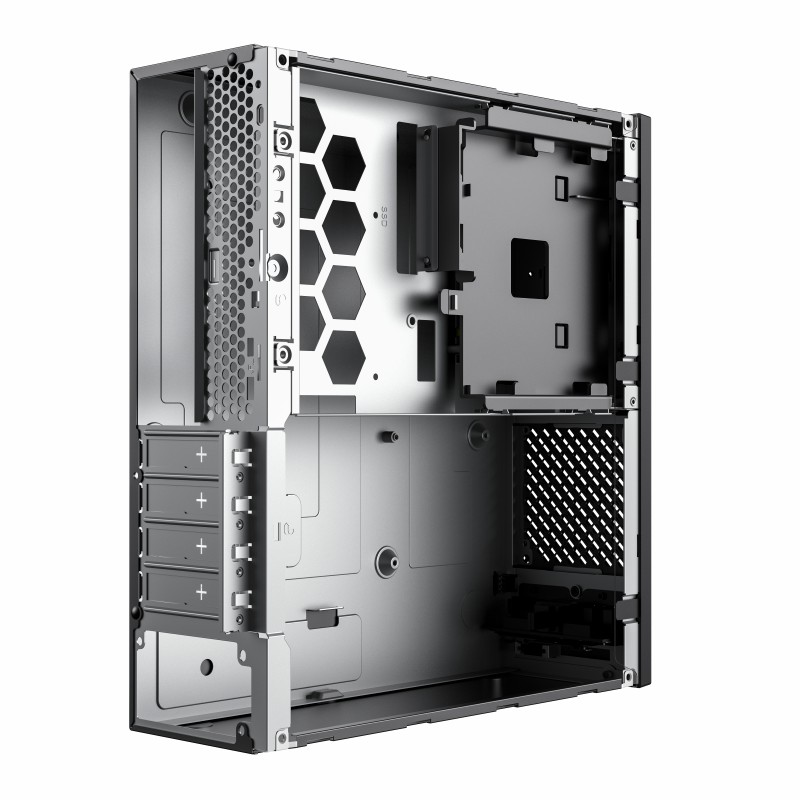

8L Chassis
8L Desktop SFF Case ( Not for Sale in Brasil )
8L Desktop SFF Case ( Not for Sale in Brasil )
Simple , Stylish Appearance with fully Tool-less design, microATX motherbaord full size support ( Not for Brasil Market )
DETAIL
