Model | TM202 | |
Chassis | SGCC 0.6mm | |
PSU Form Factor | Bottom/TFX | |
M/B Form Factor | Micro-ATX (Max 200*210mm)、Mini-ITX | |
Front Panel | ABS | |
Top Panel | metal | |
Branding | Box | |
Unit | ||
(Unit) Position | ||
Side Panel | Left | metal cover |
Right | metal cover | |
External Drive Bay(s) | 5.25" (Slim ODD) | *1 |
3.5" | *0 | |
Internal Drive Bay(s) | 3.5" (HDD) | *1 |
2.5" (SSD) | *1 | |
I/O | Buttons | *1 |
USB1.1 Port(s) | *0 | |
USB2.0 Port(s) | *2 | |
USB3.0 Port(s) | *0 | |
USB3.1 Port(s) | *0 | |
HD Audio Support | *1 | |
Type C | *0 | |
P-lock | *0 | |
Card reader | *1(optional) | |
Security /COM port | kensington lock,Pad lock | |
Cooling Fan Support | Front | 1x80mm(Fan optional) |
Top | 0 | |
Rear | 0 | |
Left Side | 0 | |
PSU Cover | 0 | |
Water Cooling Support (Radiator Size) |
Front | 0 |
Top | 0 | |
Rear | 0 | |
Dust Cover | 0 | |
Slots | *2 | |
Carton & Logo | OEM | |
Dimensions | Chassis | (L)28cm x (W)9.3cm x (H)29 cm |
Full Case (inc Fascia) | (L)31cm x (W)9.3cm x (H)29 cm | |
Carton | (L)34.6 cm x (W)14.6 cm x (H)36 cm | |
Net Weight (Kg) | kgs | |
Gross Weight (Kg) | kgs | |
VGA Card Length | up to 130mm | |
CPU Cooler Height | 65mm |
7.5L Chassis

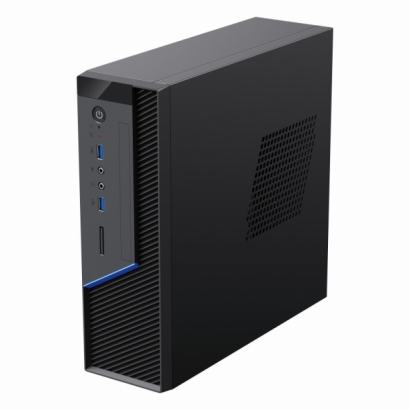

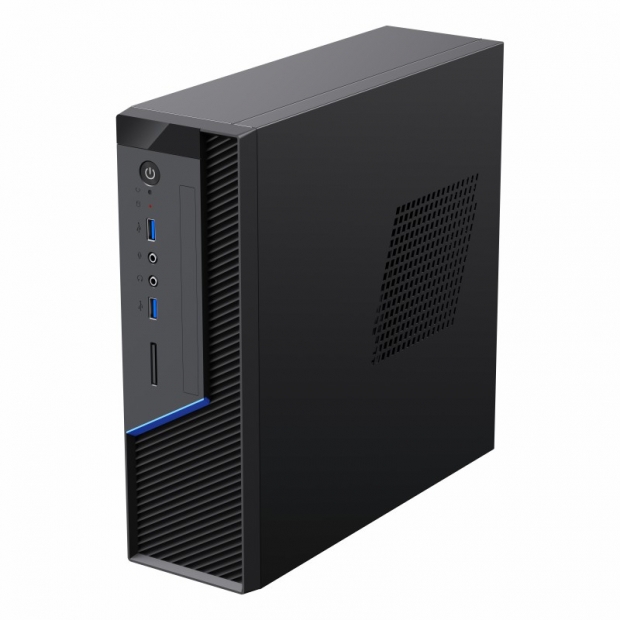

TM202 -7.5L Desktop SFF Case
TM202 -7.5L Desktop SFF Case
Simple ,Stylish Appearance with fully Tool-less design, microATX motherboard full size support
DETAIL
