| Form Factor (Midi, Micro, Mini ITX, Full) | Thin Mini ITX | |
| Chassis | SGCC 0.6mm | |
| PSU Form Factor | External DC adapter | |
| M/B Form Factor | Thin Mini ITX | |
| Front Panel | Plastic: ABS | |
| Top Panel | metal cover | |
| Branding | Box | |
| Unit | ||
| (Unit) Position | ||
| Side Panel | Left | metal cover |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *0 |
| 2.5" (SSD) | *1 | |
| I/O | Buttons | *1 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *0 | |
| USB3.1 Port(s) | *0 | |
| Type C(2.0) | *1(Optional) | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| Accessory | Speaker | *1(Optional) |
| PC foot stand | *1 | |

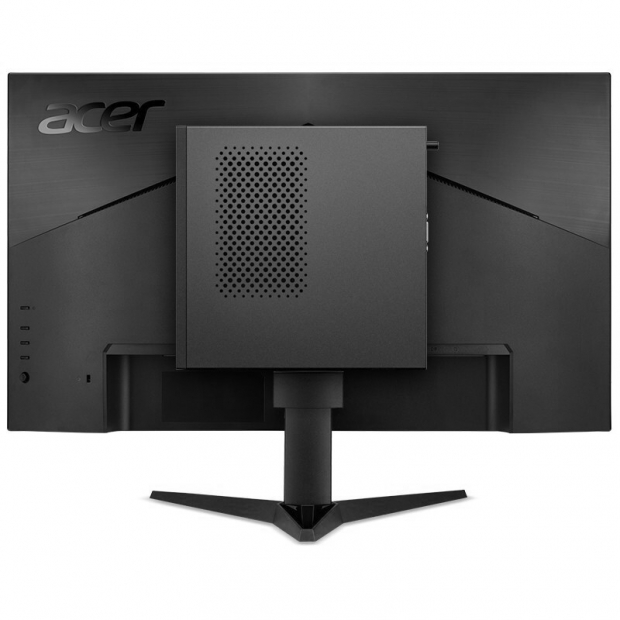

| VESA | *1(Optional) | |
| Security | Cable cover, kensington lock, security screw | |
| Cable cover | *1(Optional) | |
| WiFi Antenna | *0 | |
| Cooling Fan Support | Front | 0 |
| Top | 0 | |
| Rear | 0 | |
| Left Side | 0 | |
| PSU Cover | 0 | |
| Water Cooling Support (Radiator Size) |
Front | 0 |
| Top | 0 | |
| Rear | 0 | |
| Dust Cover | 0 | |
| Slots | 0 | |
| Carton & Logo | OEM | |

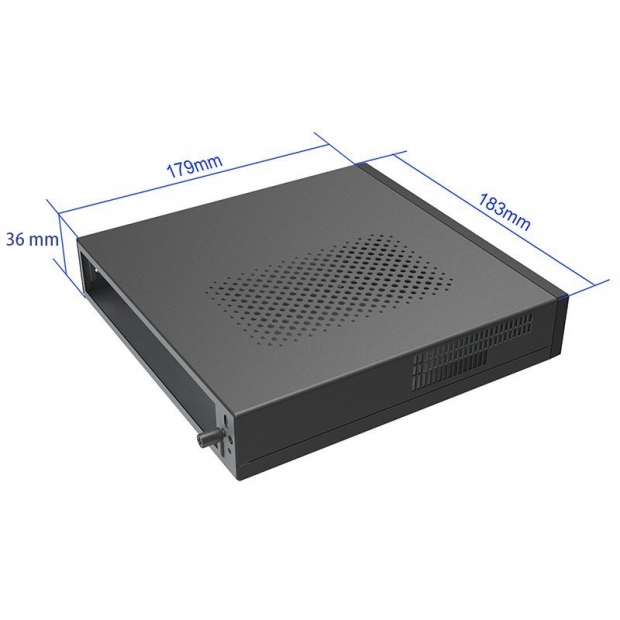

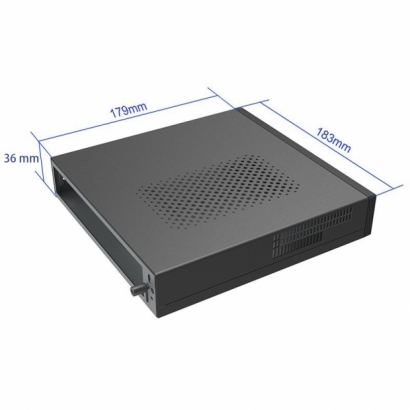

| Dimensions | Chassis | (L)17.9cm x (W)3.7cm x (H)18.3cm |
| Full Case (inc Fascia) | (L)18.65cm x (W)3.7cm (H)18.4cm | |
| Carton | (L)25.3cm x (W)8.4cm x (H)22.5cm K3K | |
| Net Weight (Kg) | 0.6kgs | |
| Gross Weight (Kg) | 1.2kgs | |
| VGA Card Length | ||
| CPU Cooler Height | 19mm | |
| Cable Management Depth | ||
1L Chassis
Thin Client 1L Case
Thin Client 1L Case
For mini PC, Pico power supported.Ultra thin Thin-Mini-ITX Chassis (1L Design)
